Hydraulic Rubber Cutter
Hydraulic Rubber Cutter
Equipment use

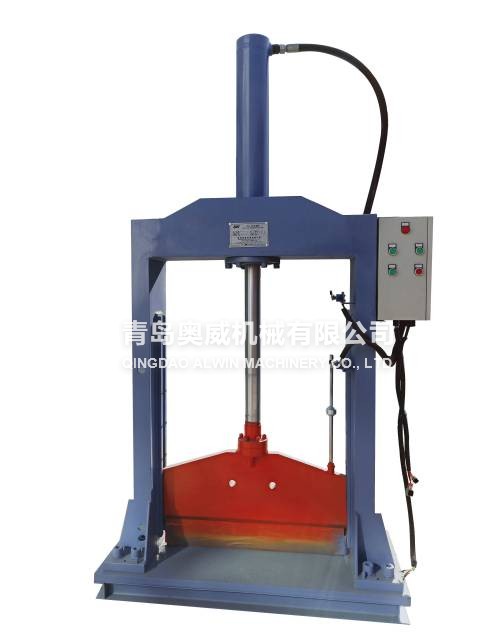

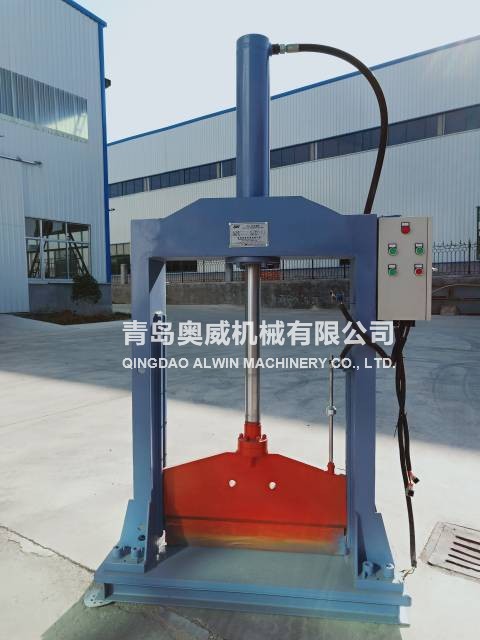

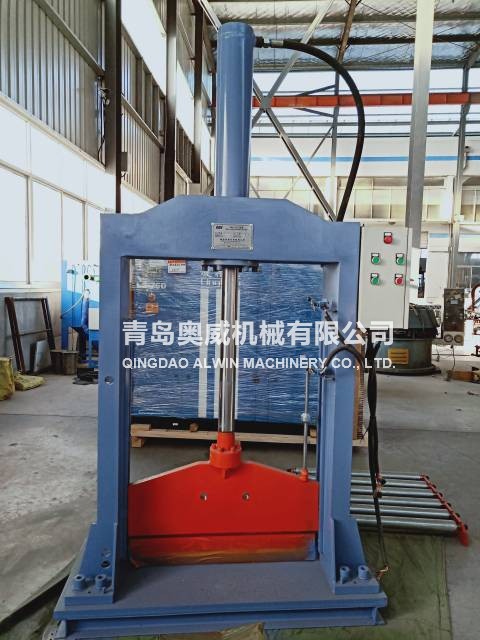

The rubber cutter is mainly used to cut the natural rubber, synthetic rubber and other plastic materials, especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber. This rubber cutter mainly consists of cutting knife, frame, cylinder, base, auxiliary table, hydraulic system and electric system. The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife.


Hydraulic Rubber Cutter
Hydraulic Rubber Cutter
Hydraulic Rubber Cutter
Hydraulic Rubber Cutter
Parameter
型号 TypeXQL-80XQL-160

电机功率

Motor power (kw)

5.57.5

额定切断力

Rated cutting force (kn)

80160

切胶宽度

Cutting width (mm)

690790

切胶行程

Cutting stroke (mm)

680700

工作油压

Pressure of working oil (Mpa)

88

重量

Weight (kg)

10001200

外形尺寸

Overall dim. (LxWxH) (mm)


2200X1000X25002500X1000X2500
