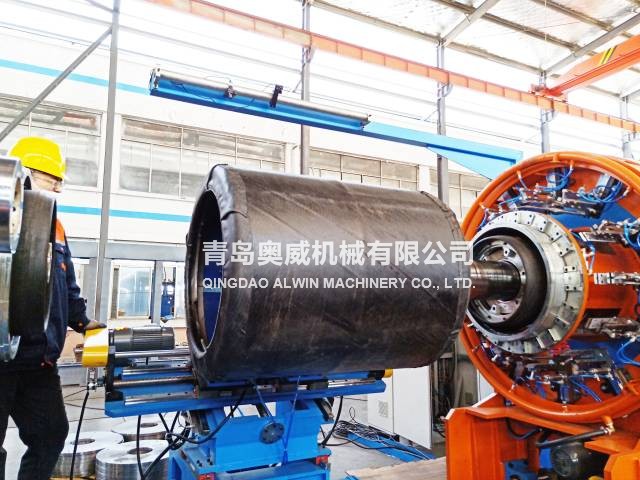

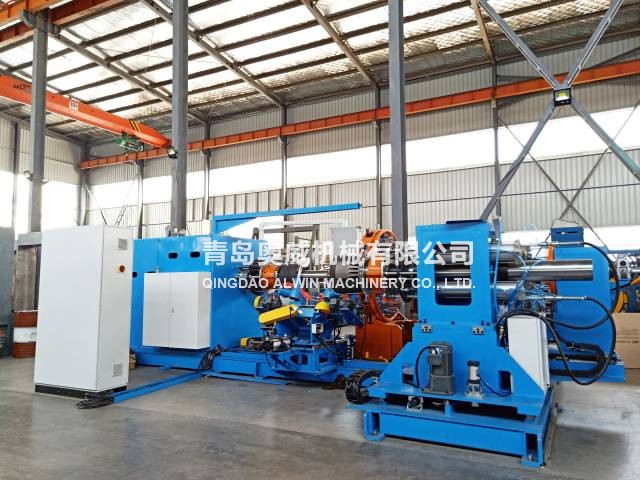

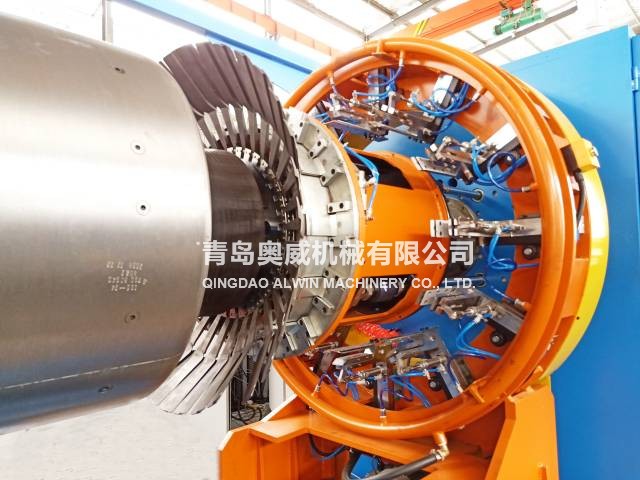

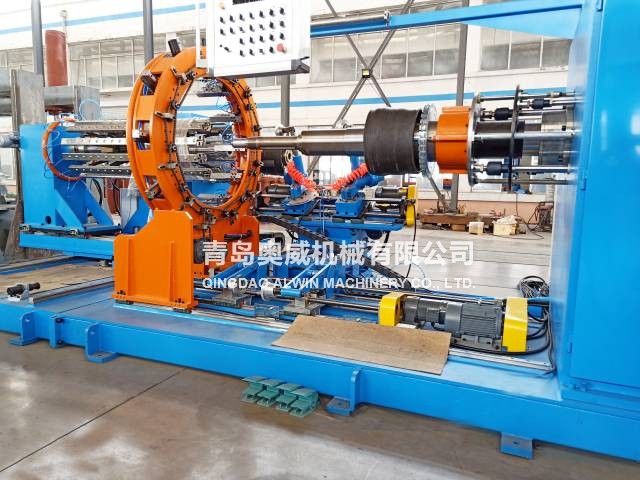

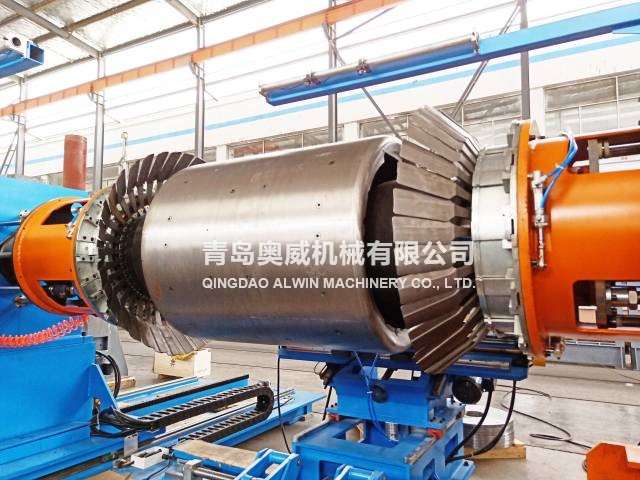

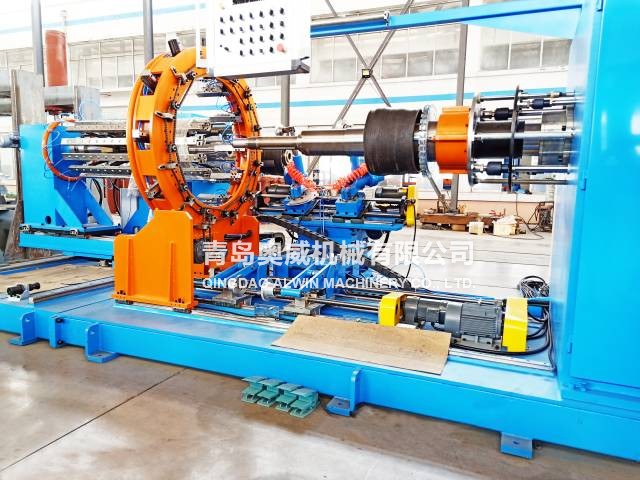

This machine is suitable for motorcycle tire,car tire,truck car tire building. Its forming drum adopts metal AB structure while tire building adopts finger turn down,bladder turn up.
This machine is suitable for motorcycle tire,car tire,truck car tire building. Its forming drum adopts metal AB structure while tire building adopts finger turn down,bladder turn up.
| 型号Type | BTU-0814 | BTU-1518 | BTU-1921 | 可根据客户轮胎规格定制机型 The tyre building machine can be customerized according to different tyre specification. |
钢丝圈直径 Bead dia.(mm) | 8’’-14’’ | 15’’-18’’ | 19’’-21’’ | |
钢丝盘宽度 Chuck width(mm) | 180-450 | 130-450 | 130-450 | |
主轴中心高度 Spindle center height(mm) | 900 | 900 | 900 | |
主轴转速 Spindle speed(r/min) | 35/70/200 | 35/70/200 | 35/70/200 | |
外形尺寸 Overall dimension(L×W×H) | 5780×1500×2030 | 5925×1600×2030 | 5925×1600×2030 | |
重量 Weight(KG | 5200 | 6200 | 6200 |
