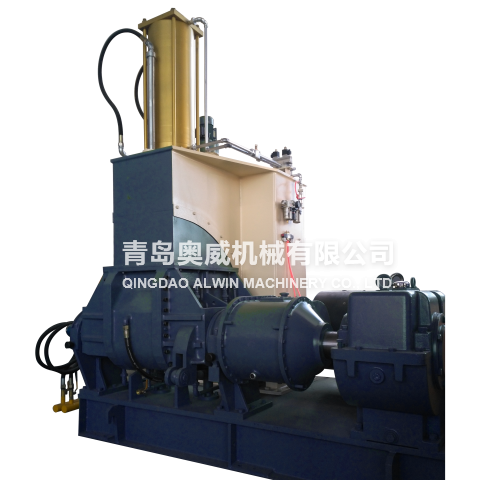

The dispersion mixer is used for rubber or plastic plasticating and mixing or rubber and plastic blending. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled so that the productivity is high and the quality is good and stable.
| 型号 Type | X(S)N-35x30 | X(S)N-55X30 | X(S)N-75X30 | X(S)N-110X30 | X(S)N-150×30 | X(S)N-200×30 | |
捏炼总容积 Total volume of kneading chamber (L) | 75 | 125 | 170 | 250 | 325 | 440 | |
密炼总容积 Total volume of mixing chamber (L) | 35 | 55 | 75 | 110 | 150 | 200 | |
主驱动电机功率 Driving motor power (kw) | 55 | 75 | 110 | 185 | 220 | 280 | |
翻转电机功率 Revolving motor power (kw) | 2.2 | 3 | 4 | 5.5 | 11 | 11 | |
翻转角度 Revolving angle (°) | 140° | 140° | 140° | 140° | 液压127 | 液压127 | |
转子轴转速（前/后） Revolving speed of rotor (front/back) (r/min) | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | |
压缩空气工作压力 Working pressure of compressed air (Mpa) | 0.5-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
压缩空气流量 Flow rate of compressed air (m3/min) | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 | ≥4.0 | |
冷却水压力（炼胶） Pressure of cooling water (rubber mixing) (Mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
加热蒸汽压力 Pressure of heated steam (plastication) (Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
外形尺寸 Overall dim. (mm) | L | 3200 | 3230 | 3325 | 4075 | 4250 | 4250 |
| W | 1900 | 1927 | 2615 | 2712 | 2750 | 3400 | |
| H | 2950 | 2958 | 3105 | 3580 | 4106 | 4215 | |
| 重量 Weight (t) | ~6.3 | ~7.1 | ~9.5 | ~14.9 | ~19.5 | ~22.5 | |
