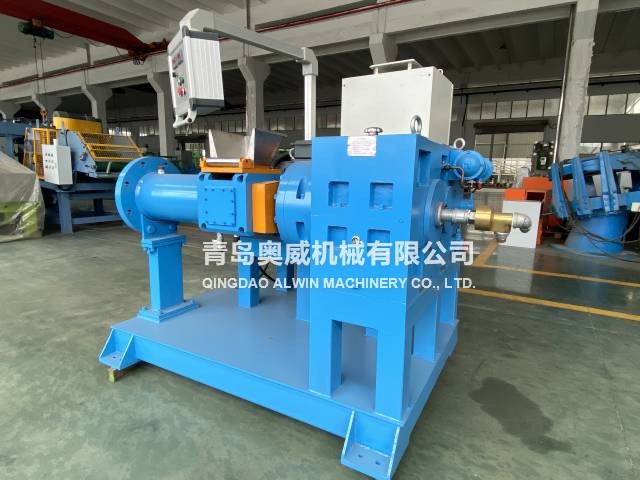

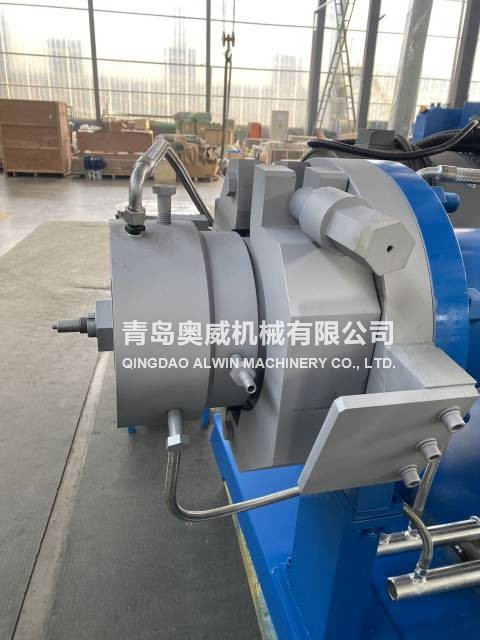

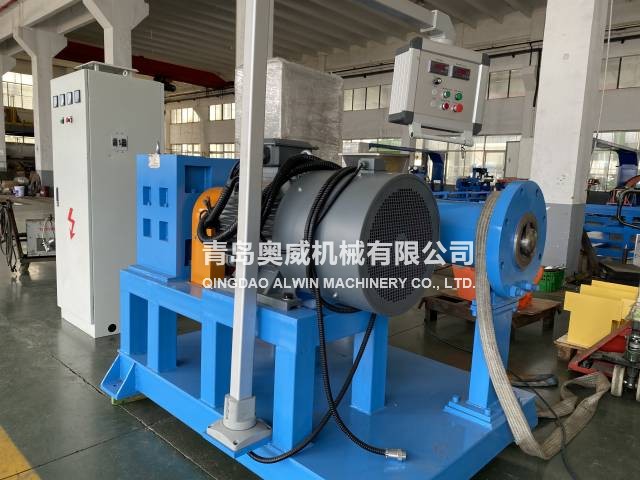

The machine is mainly used for extruding and moulding rubber material, and to produce the semi-finished products with certain sectional configuration, such as tyre thread, inner tube, rubber hose, rubber strip and so on, which can be used to wrap the steel wire cable and electrical wire.
| 型号Type | XJ-65 | XJ-115B | XJ-120 | XJ-150 | XJ-200 | |
螺杆螺纹形式 Form of screw&screw thread | 双头等深收敛式 Double-head equaldepth convergent type | 双头收敛式 Double-head convergent type | 双头收敛式 Double-head convergent type | 双头不等深收敛式 Two-head unequal depth convergent type | 双头收敛式 Double-head convergent type | |
螺杆直径 Dia. of screw (mm) | 65 | 115 | 120 | 150 | 200 | |
螺杆长径比 L/D of screw | 4 | 4.8 | 4.6 | 4.43 | 4.35 | |
压缩比 Compression ratio | 1.3 | 1.34 | ||||
螺杆转速 Revolving speed of screw (r/min) | 5.2-54 | 5.2-54 | 5.6-55.6 | 20-26 | 22.4-67.2 | |
电机功率 Motor power (kw) | 电磁调速7.5KW Electromagnetic speed 7.5KW | 电磁调速22KW Electromagnetic speed 22KW | 电磁调速22KW Electromagnetic speed 22KW | 变频调速55KW/8.3-55KW Frequency conversion speed regulating 55KW/8.3-55KW | 变频调速75KW/25KW-75KW整流电机 Frequency conversion speed regulating 75 commutator motor 25-75 | |
生产能力 Production capacity (kg/h) | 50-80 | 100-420 | 100-450 | 700-1200 | 1500-2200 | |
蒸汽压力 Steam pressure (Mpa) | 0.2-0.3 | 0.4-0.6 | 0.2-0.4 | 0.6 | 0.6-0.8 | |
冷却水压力 Pressure of cooling water (Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.4 | 0.2-0.3 | 0.2-0.3 | |
外形尺寸 Overall dim. (mm) | L | 1750 | 2390 | 2427 | 3411 | 4564 |
| W | 550 | 760 | 750 | 814 | 1800 | |
| H | 1100 | 1450 | 1330 | 1470 | 1750 | |
