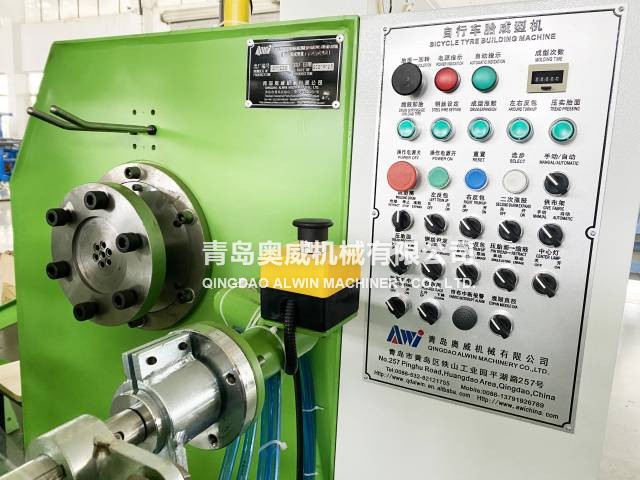

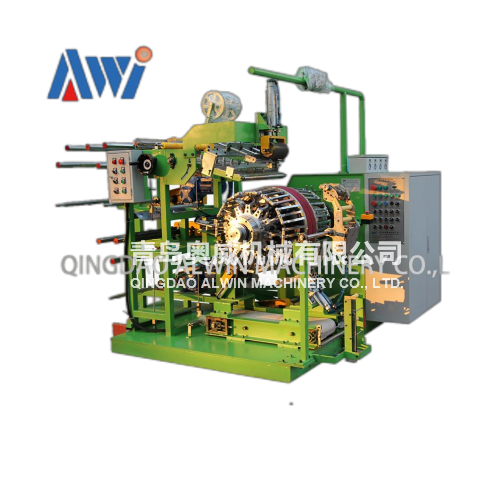

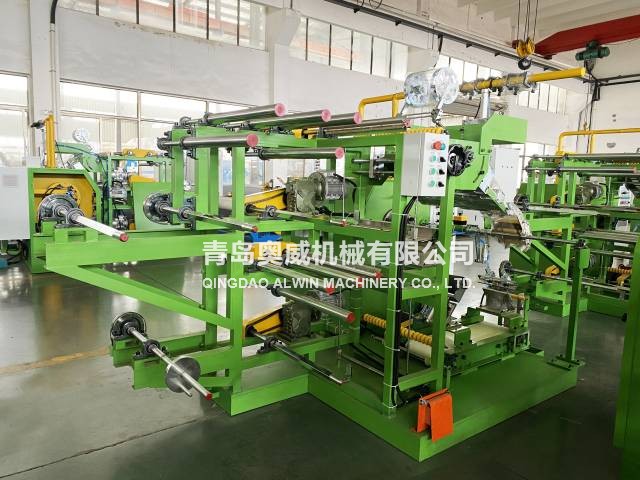

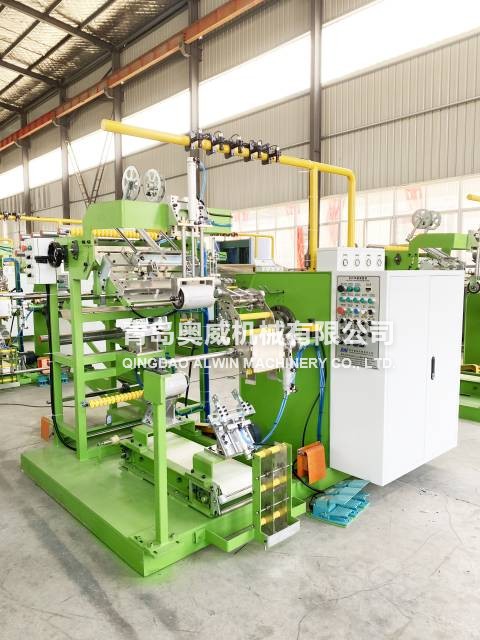

The building machine is used for produce motorcycle tire and motorcycle tubeless green tire building.Integration of PLY applying,bead applying & cord turn-up,high degree of automation,good quality green tire building,easy and simple operation,it is advanced tire building machine equipment in China.
轮胎规格 Specification of tyre | 摩托车/自行车胎 Motorcycle/bike tyre |
适用帘布 Suitable cord fabric | 8”-28” |
帘布卷最大直径 Max. dia. of cord fabric roll (mm) | 400 |
衬布最大直径 Max. dia. of lining cloth roll (mm) | 300 |
成型筒转速 Revolving speed of building drum (r/min) | 35-120 |
主轴马达功率 Main drive motor power (kw) | 2.2 |
辊压马达功率 Roller motor power (kw) | 0.75 |
供纱机马达 Ply servicer motor | 1/2HPx4Px1/20/each ply |
压缩空气压力 Pressure of compressed air (kg/cm2) | 5-7 |
外形尺寸 Overall dim. (LxWxH) (mm) | 2300x2200x2050 |
成型速度 Building speed | 2PLY building 500pcs/8hrs 4PLY building 400pcs/8hrs |
