Inner Tube Curing Press (Tube Vulcanizer)

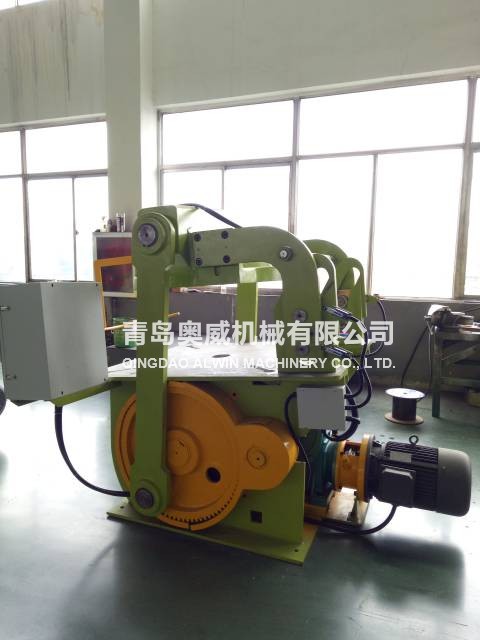

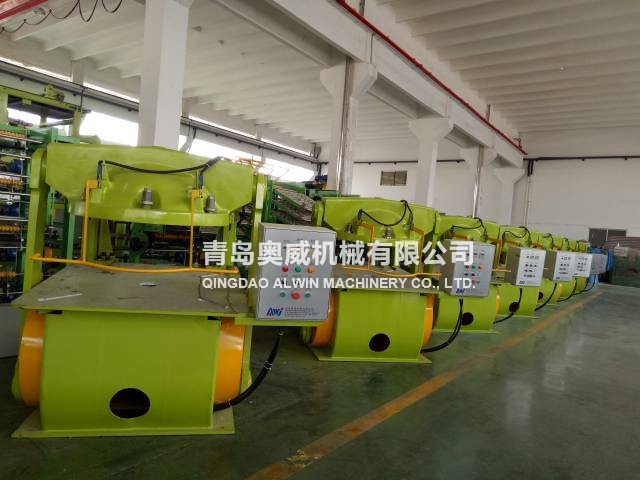

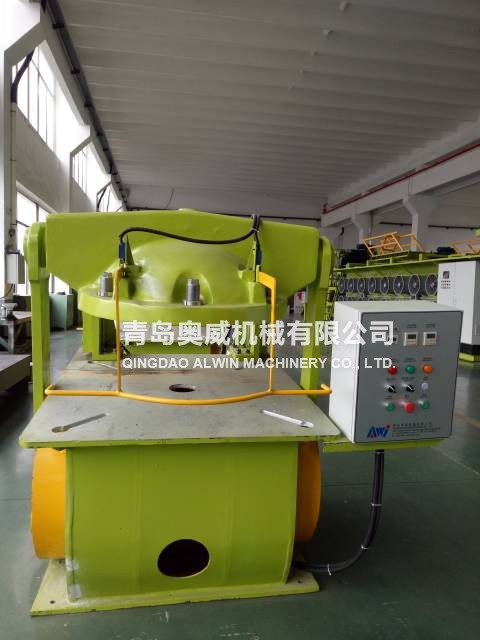

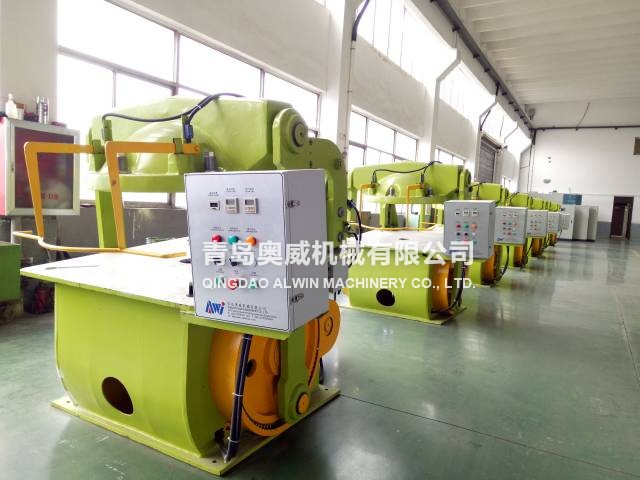

Mechanical Inner Tube Curing Press
Equipment use
Mechanical Inner Tube Curing Press
Mechanical Inner Tube Curing Press
Mechanical Inner Tube Curing Press
Mechanical Inner Tube Curing Press
Mechanical Inner Tube Curing Press
Mechanical Inner Tube Curing Press
Parameter
型号modelsLLN-910LLN-1140LLN-1430LLN-2040LLN-2160

合模力          MN

Mould clamping force

0.300.500.851.802.25

联杆内侧公称间距mm

Normal space between two side links

9101140143020402100

模型最大高度    mm

Max. height of the mould

320380450790820

模型最小高度    mm

Min. height of the mould

250310360440440

模型开闭时间      S

Open and close mould time

≤55101917

输入内胎的饱和蒸汽压力   Mpa

Saturated steam pressure of the tube

≤1.0≤1.0≤1.0≤1.0≤0.8

输入模型内的饱和蒸汽压力   Mpa

Steam pressure of the mould inlet

≤1.0≤1.0≤1.0≤1.0≤0.8

驱动电动机功率  KW

Motor power

45.55.51111

驱动电动机转速 r/min

Motor speed

960960960960730

外形尺寸       mm

Overall dimention(L x W x H)

2170×1500×16152457×1670×20092710×2210×20603450×2650×33602850×2700×2700
