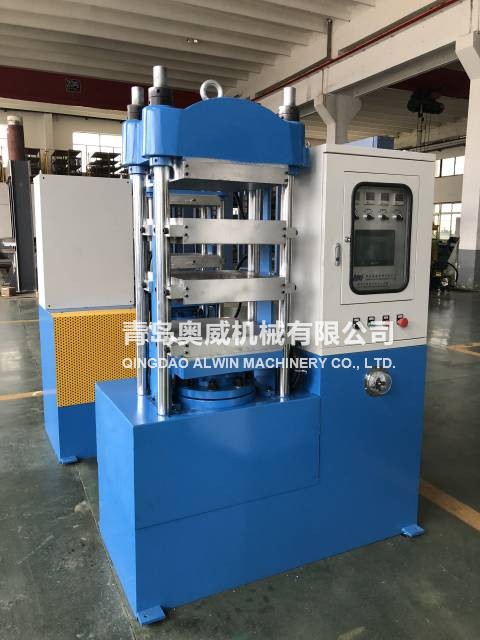

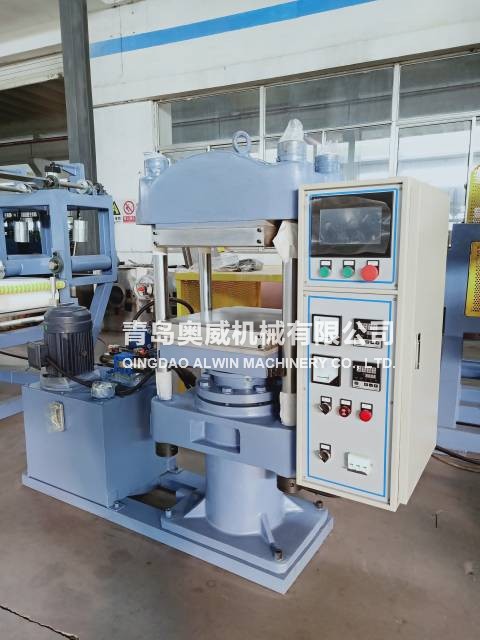

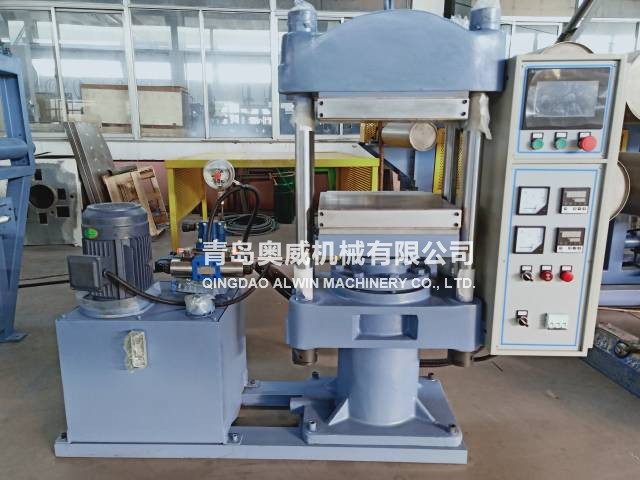

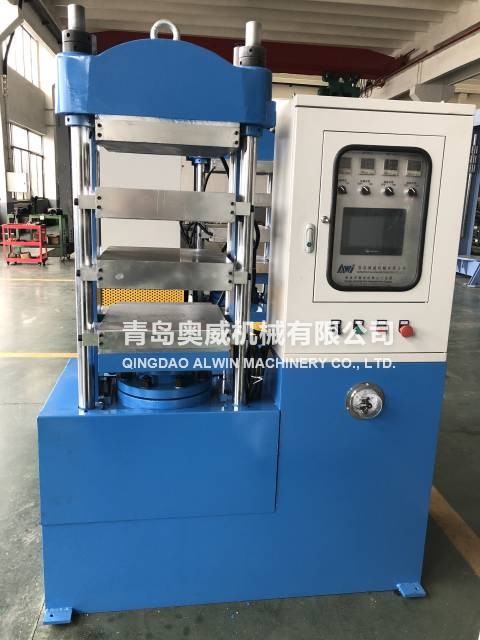

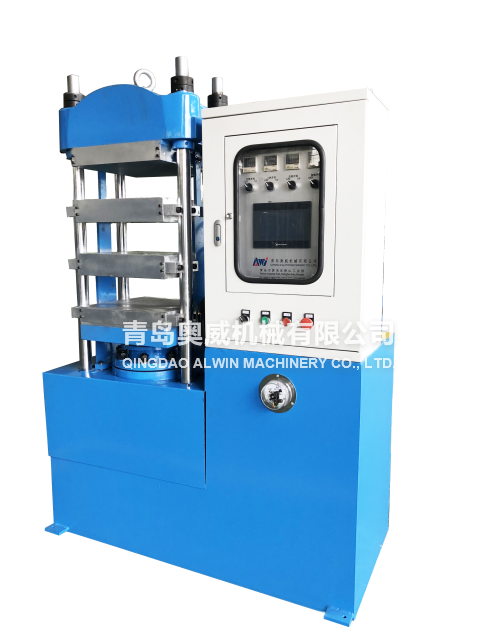

The machine is main device which is used in pressing and molding various rubber model goods and non model goods,it also can be used in pressing various heat solidify plastic and sparkling rubber and plastic goods.It has independent drive framework and electrical system,adopts button to centralized control.Working pressure and heating temperature can be adjusted in the range.
产品型号 Type | XLB-DQ 300×300×2 | XLB-DQ 350×350×2 | XLB-DQ 400×400×2 | XLB-DQ 500×500×2 | XLB-DQ 600×600×2 | XLB-DQ 750×750×2(4) | |
公称合模 Total pressure(mm) | 0.25 | 0.25 | 0.50 | 0.50 | 1.00 | 1.60 | |
热板规格 Heating plate size（mm） | 300×300 | 350×350 | 400×400 | 500×500 | 600×600 | 750×850 | |
热板间距 Plate space（mm） | 125 | 125 | 125 | 125 | 125 | 125 | |
工作层数 Working layer number | 2 | 2 | 2 | 2 | 2 | 2(4) | |
柱塞行 Piston stroke(mm) | 250.00 | 250 | 250 | 250 | 250 | 250(500) | |
热板单位面积压力 Plate pressure(Mpa) | 3.1 | 3.1 | 3.1 | 3.1 | 2.8 | 2.5 | |
主电机功率 Main motor power | 1.50 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | |
外形尺寸 Overall size | 长(L) | 1100 | 1100 | 1300 | 1300 | 1410 | 1900 |
| 宽(W) | 500 | 500 | 550 | 550 | 680 | 950 | |
| 高(H) | 1100 | 1200 | 1500 | 1500 | 1750 | 2028 | |
重量 Weight（kg） | 500 | 750 | 1300 | 1500 | 2500 | 5000(6000) | |
