Tire Curing Press (Tire Vulcanizer)

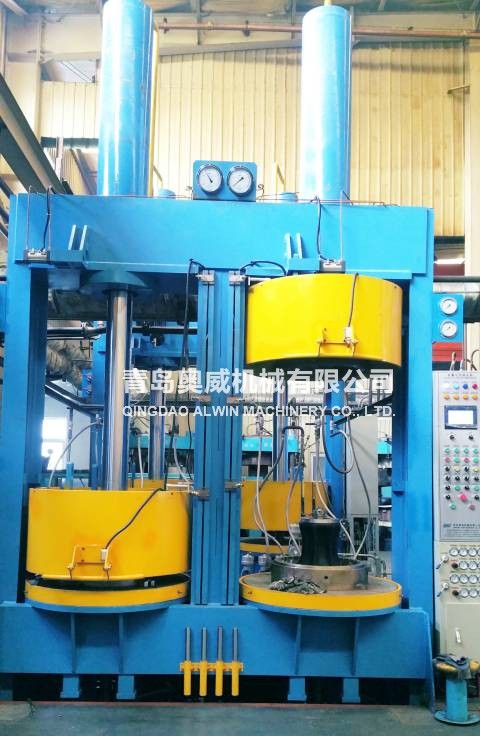

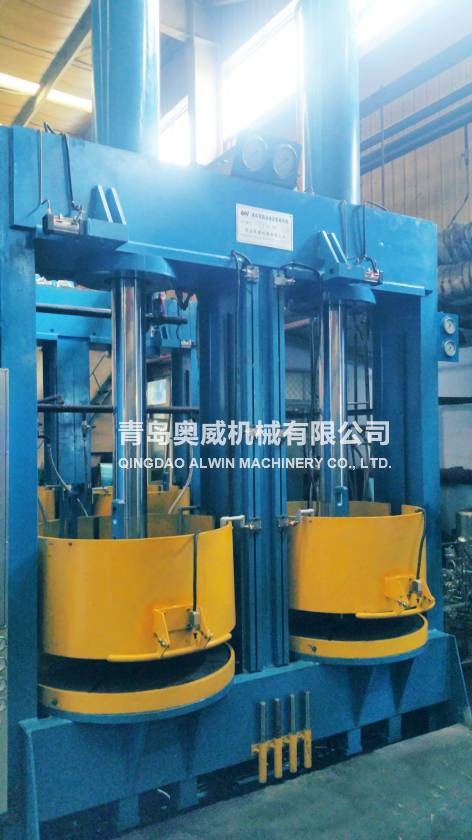

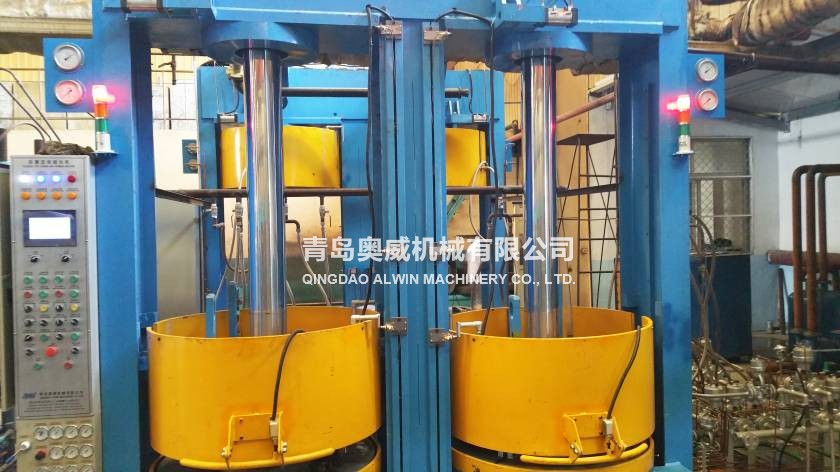

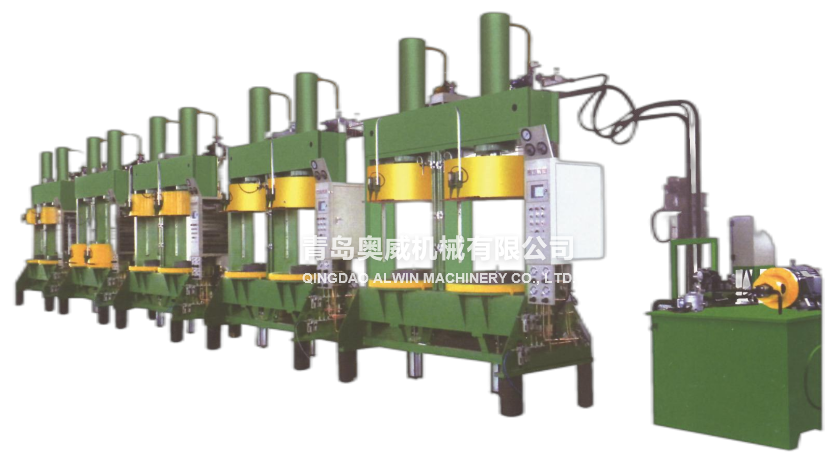

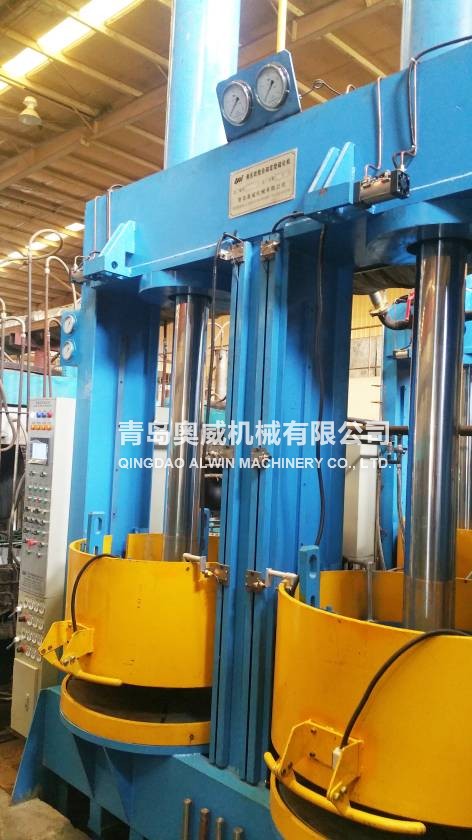

Dual-mold Automatic Hydraulic Tire Curing Press
Equipment use
Dual-mold Automatic Hydraulic Tire Curing Press
Dual-mold Automatic Hydraulic Tire Curing Press
Dual-mold Automatic Hydraulic Tire Curing Press
Dual-mold Automatic Hydraulic Tire Curing Press
Dual-mold Automatic Hydraulic Tire Curing Press
Dual-mold Automatic Hydraulic Tire Curing Press
Dual-mold Automatic Hydraulic Tire Curing Press
Dual-mold Automatic Hydraulic Tire Curing Press
Dual-mold Automatic Hydraulic Tire Curing Press
Dual-mold Automatic Hydraulic Tire Curing Press
Parameter

适用外胎种类

Applicable types of tyres

摩托车轮胎

Mobike tyres

摩托车轮胎

Mobike tyres

规格

Specification

8″-21″4″-12″

模型数量

No. of molds

2-42-4

总压力(每个模型)

Total pressure (each mold) (Mpa)

10060

液压系统压力设定值

Hydraulic system pressure setting (Mpa)

≤21≤21

液压工作压力设定值

Hydraulic working pressure setting (Mpa)

≤19.5≤19.5

热板直径

Dia. of hot plate (mm)

950650

保温罩内径

Inner dia. of insulation cover (mm)

Φ975Φ700

最大热板间距

Max. clearance between plates (mm)

10001000

适用模具高度

Applicable mold height (mm)

120-300120-300

生胎最大厚度

Max. thickness of green tyre (mm)

450450

脱模力

Demolding force (k)

750750

最大顶胎高度

Max. height of the top tire (mm)

200200

开(合)模速度

Open (close) mold speed (mm/s)

6060

热板加热蒸汽压力

Hot plate heating steam pressure (Mpa)

Max.1.0Max.1.0

内压蒸汽或压缩空气压力

Inner pressure steam or compressed air pressure (Mpa)

1.5-2.31.5-2.3

定型蒸汽或压缩空气压力

Shaping steam or compressed air pressure (Mpa)

0.1-0.20.1-0.2

水(气)缸用压力

Water (gas) cylinder use pressure (Mpa)

1.5-21.5-2

控制用压缩空气压力

Controlling use compressed air pressure (Mpa)

0.350.35

真空度

Vacuum (Mpa)

0.013-0.0260.013-0.026

液压油

Hydraulic oil

46#anti-wear hydraulic oil46#anti-wear hydraulic oil

油泵电机

Pump motor (kw)

Y180L-4-22Y180L-4-22

机器总重量

Total weight (kg)

115009500
