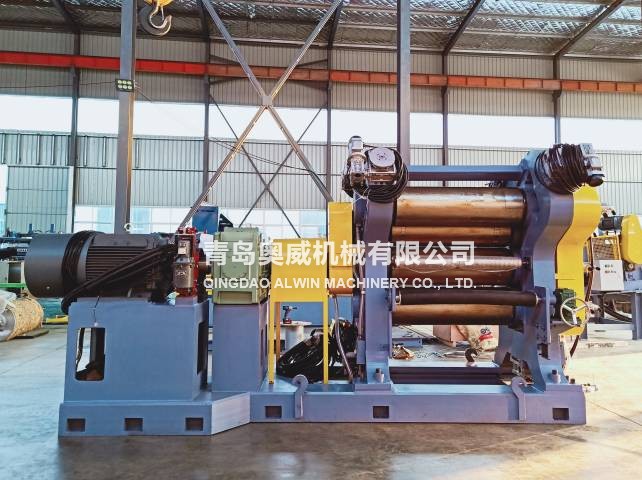

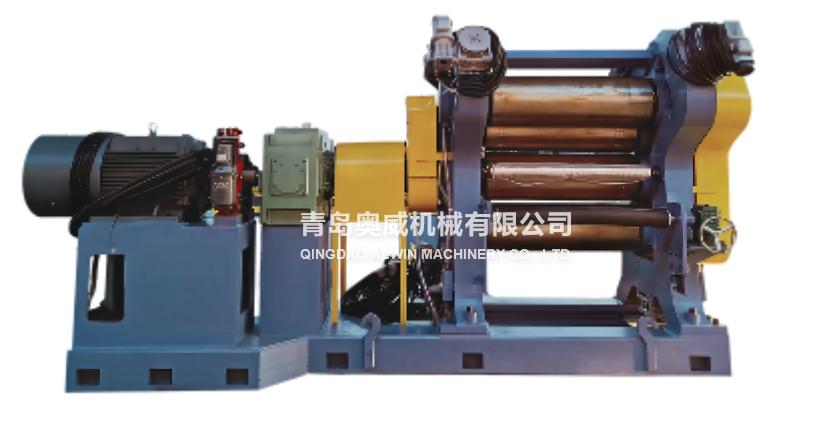

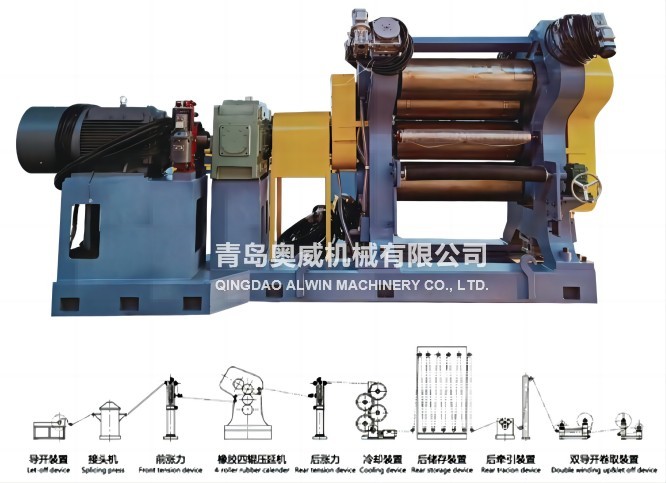

用于橡胶、塑料的压延，纺织物的擦胶、贴胶、塑料的制片、复合等。压延机有两辊、三辊、四辊，辊筒直径在φ250-φ800mm，辊筒排布型式有I型、r型、Г型、S型。
用于橡胶、塑料的压延，纺织物的擦胶、贴胶、塑料的制片、复合等。压延机有两辊、三辊、四辊，辊筒直径在φ250-φ800mm，辊筒排布型式有I型、r型、Г型、S型。
型号Model | XY-4S(Г)230×630 | XY-4S(Г)252×720 | XY-4S(Г)300×900 | XY-4S(Г)360×1120 | XY-4S(Г)400×1200 | XY-4S(Г)450×1400 | XY-4S(Г)500×1500 | XY-4S(Г)550×1600 | XY-4S(Г)610×1730 | XY-4S710×1800 | XY-4S(Г)710×2130 | XY-4S(Г)800×2500 | XY-4S(Г)860×2500 | XY-4S(Г)900×2800 | |
辊筒直径Roll diameter(mm) | 230 | 252 | 300 | 360 | 400 | 450 | 500 | 550 | 610 | 710 | 710 | 800 | 960 | 900 | |
工作长度Roll working length(mm) | 630 | 720 | 900 | 1120 | 1200 | 1400 | 1500 | 1600 | 1730 | 1800 | 2130 | 2500 | 2500 | 2800 | |
辊筒速比Roll ratio | 1:1:1:1 | 1:1:1:1 | 1:1:1:1 | 0.73:1:1:0.73 | 1:1.38:1.38:1 | 1:1.5:1.5:1 | 1:1.5:1.5:1 | 1:1.5:1.5:1 | 1:1.4:1.4:1 | 0.5-1可调 Adjustable | 1:1.5:1.5:1 | 0.5-1可调 Adjustable | 0.5-1可调 Adjustable | 0.5-1可调 Adjustable | |
中辊线速度Middle-roll liner speed (m/min) | 1.1-11 | 2-15.9 | 2-18 | 2-20 | 3-26.9 | 3-26.2 | 3-30 | 3-30 | 4-40 | 4-40 | 4-40 | 4-40 | 4-40 | 4-40 | |
调距范围Adjusting nip range(mm) | 0-6 | 0-6 | 0-6 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-30 | 0-15 | 0-30 | 0-30 | 0-30 | |
制品最小厚度Min. Calendering product thickness(mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | |
制品宽度Calendering product width (mm) | 500 | 580 | 700 | 920 | 1000 | 1200 | 1300 | 1300 | 1500 | 1600 | 1900 | 2200 | 2200 | 2500 | |
电机功率Motor power(kw) | 15 | 22 | 45 | 55 | 75 | 110 | 132 | 160 | 200 | 90KW×2 110KW×2 | 280 | 132KW×4 | 132KW×2 160KW×2 | 160KW×4 | |
外形尺寸Overall dimensions(mm) | L | 3700 | 4050 | 4400 | 5590 | 6400 | 6900 | 7100 | 7550 | 6910 | 9950 | 7650 | 11400 | 12000 | 12200 |
| W | 1230 | 1360 | 1450 | 1950 | 1650 | 2380 | 2450 | 2500 | 2820 | 3600 | 3400 | 3900 | 4000 | 4200 | |
| H | 1830 | 2050 | 2200 | 2380 | 2490 | 3070 | 3180 | 3400 | 4000 | 4870 | 4680 | 5140 | 5850 | 6200 | |
| 约重 About weight(t) | ~4.8 | ~5.5 | ~12 | ~16 | ~20 | ~23 | ~36 | ~45 | ~50 | ~110 | ~100 | ~130 | ~180 | ~200 | |
