Four Roll Calender Four Roll Calender

Rubber Calender Line

Four Roll Calender

Equipment use

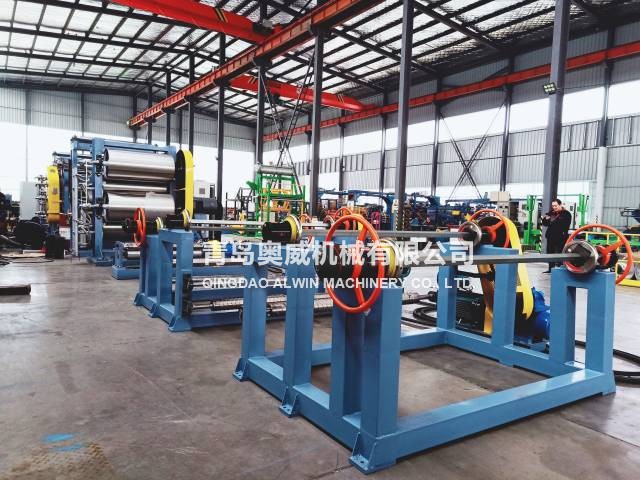

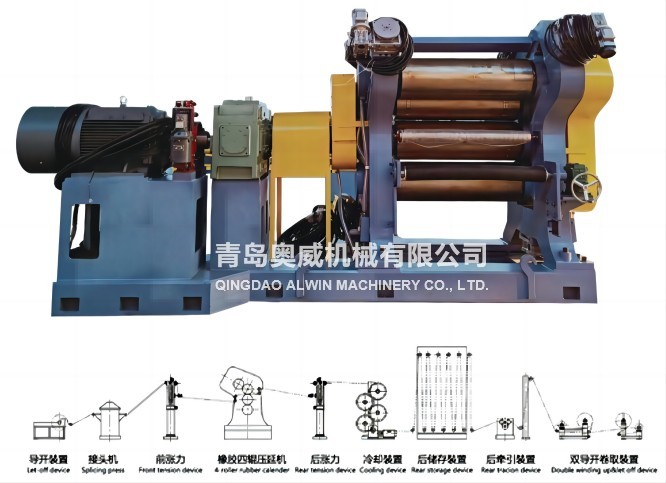

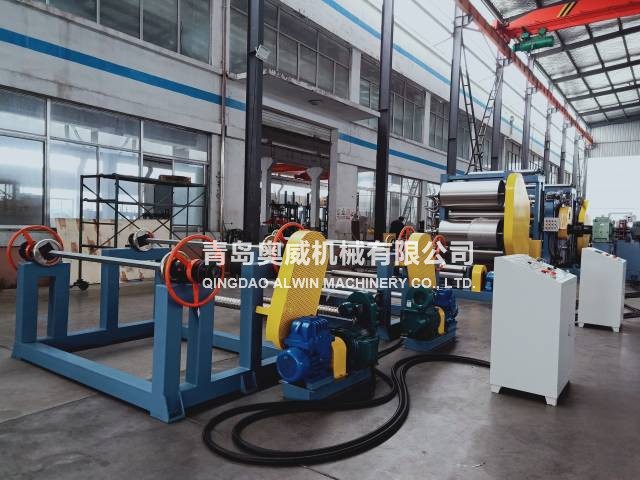

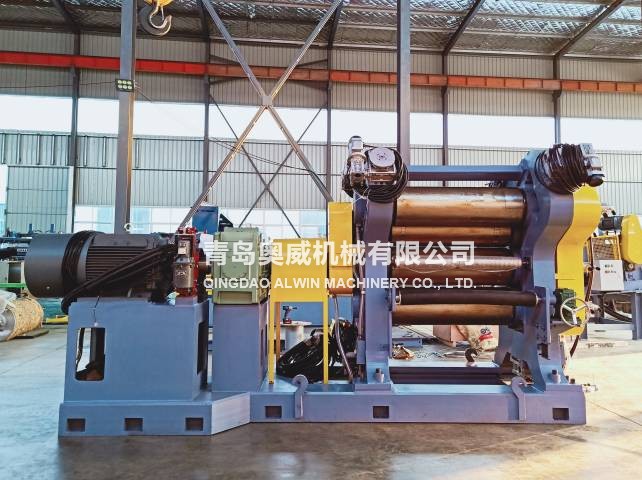

The machine is for rubber and plastics calendering and sheeting, fabric coating and pasting. The calender has two rolls, three rolls, and four rolls. The diameter of the rolls is φ250-φ800mm. The rolls are arranged in I, r, Г, and S types.

Parameter

型号 Model		XY-4S(Г)230×630	XY-4S(Г)252×720	XY-4S(Г)300×900	XY-4S(Г)360×1120	XY-4S(Г)400×1200	XY-4S(Г)450×1400	XY-4S(Г)500×1500	XY-4S(Г)550×1600	XY-4S(Г)610×1730	XY-4S710×1800	XY-4S(Г)710×2130	XY-4S(Г)800×2500	XY-4S(Г)860×2500	XY-4S(Г)900×2800
辊筒直径 Roll diameter(mm		230	252	300	360	400	450	500	550	610	710	710	800	960	900
工作长度 Roll working length(mm)		630	720	900	1120	1200	1400	1500	1600	1730	1800	2130	2500	2500	2800
辊筒速比 Roll ratio		1:1:1:1	1:1:1:1	1:1:1:1	0.73:1:1:0.73	1:1.38:1.38:1	1:1.5:1.5:1	1:1.5:1.5:1	1:1.5:1.5:1	1:1.4:1.4:1	0.5-1可调 Adjustable	1:1.5:1.5:1	0.5-1可调 Adjustable	0.5-1可调 Adjustable	0.5-1可调 Adjustable
中辊线速度 Middle-roll liner speed (m/min)		1.1-11	2-15.9	2-18	2-20	3-26.9	3-26.2	3-30	3-30	4-40	4-40	4-40	4-40	4-40	4-40
调距范围 Adjusting nip range(mm)		0-6	0-6	0-6	0-10	0-10	0-10	0-10	0-10	0-10	0-30	0-15	0-30	0-30	0-30
制品最小厚度 Min. Calendering product thickness(mm)		0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3	0.3	0.5	0.5
制品宽度 Calendering product width (mm)		500	580	700	920	1000	1200	1300	1300	1500	1600	1900	2200	2200	2500
电机功率 Motor power(kw)		15	22	45	55	75	110	132	160	200	90KW×2 110KW×2	280	132KW×4	132KW×2 160KW×2	160KW×4
外形尺寸Overall dimensions(mm)	L	3700	4050	4400	5590	6400	6900	7100	7550	6910	9950	7650	11400	12000	12200
	W	1230	1360	1450	1950	1650	2380	2450	2500	2820	3600	3400	3900	4000	4200
	H	1830	2050	2200	2380	2490	3070	3180	3400	4000	4870	4680	5140	5850	6200
约重 About weight(t)		~4.8	~5.5	~12	~16	~20	~23	~36	~45	~50	~110	~100	~130	~180	~200
