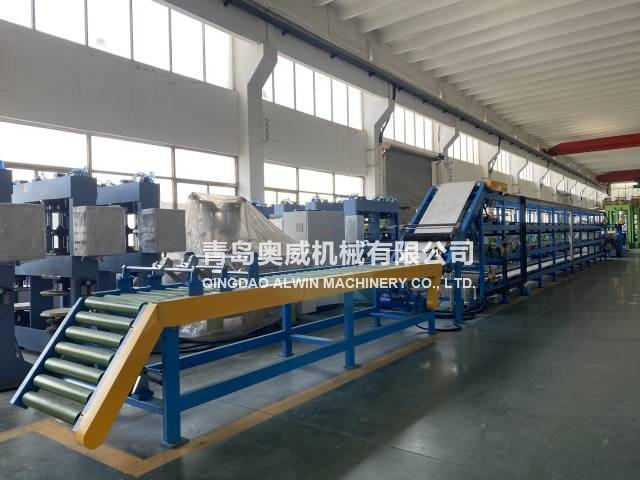

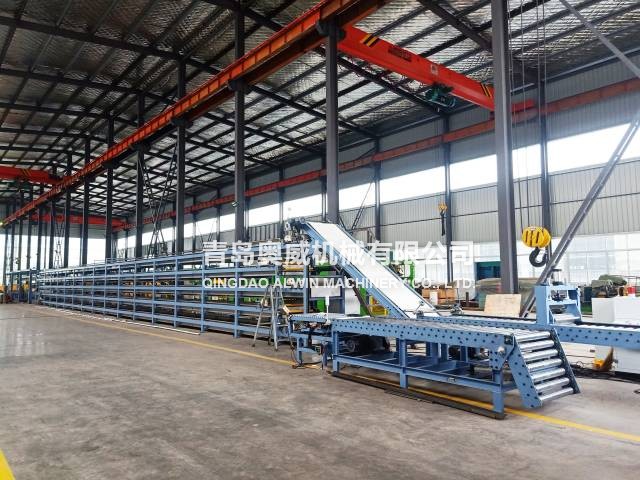

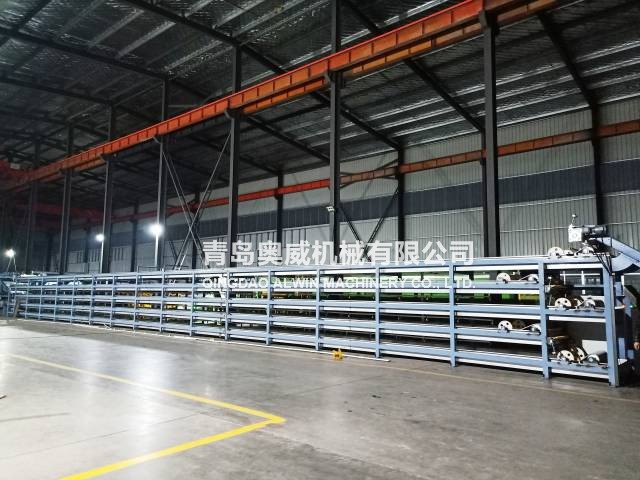

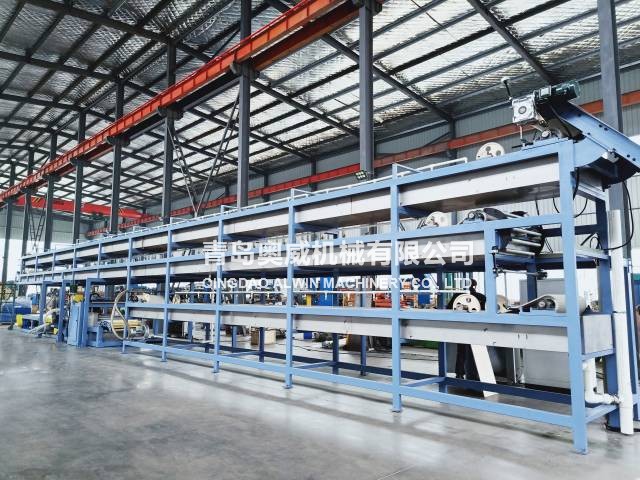

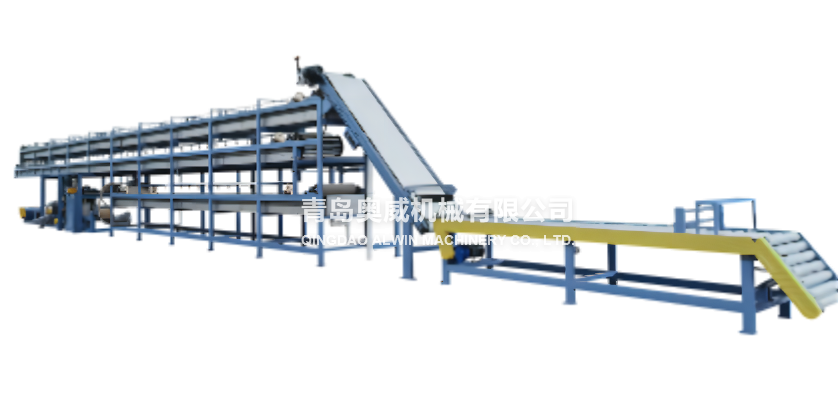

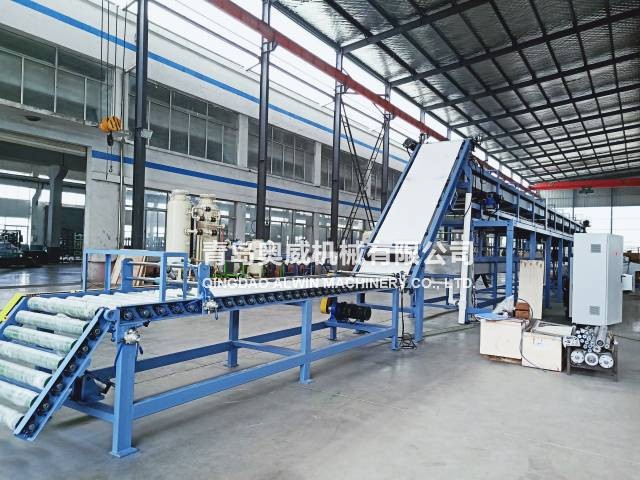

The machine is for extrusion of tire tread,sidewall etc.of bias tyre, semi/all steel radial tyres. It consists of take-off, contraction, continuous weighing, marking, calendaring and sticking base system, cooling, speed setting, cut-off, accelerated separation, water blow-off, inspection, spreading and spraying rubber cement, take-up device etc.,.
生产线速度 Line speed (m/min) | 5-25m/min |
生产辊面宽度 Width of production roll (mm) | 650 |
提取面高度 Extraction height (mm) | 900 |
收取温度 Pick-up temperature (℃) | ≤40 |
裁刀 Cutter | Max. thickness of the tread cutting: 20mm |
最大裁断宽度 Max. cutting width (mm) | 450 |
切割角度调整范围 Range of cutting angle adjustment | 35°±5° |
切割部件长度公差小于 Length tolerance of the cutting component less than | ±3 |
裁断频率 Cutting frequency | 10-15 cuts/min |
压缩空气压力 Pressure of compressed air (Mpa) | 0.6-0.8 |
电机总功率 Total motor power (kw) | 23.3 |
冷却水用量 Cooling water consumption (m3/h) | 50-60 |
外形尺寸 Overall dia. (LxWxH) (mm) | 28000x2000x2800 |
重量 Weight (kg) | 20000 |
