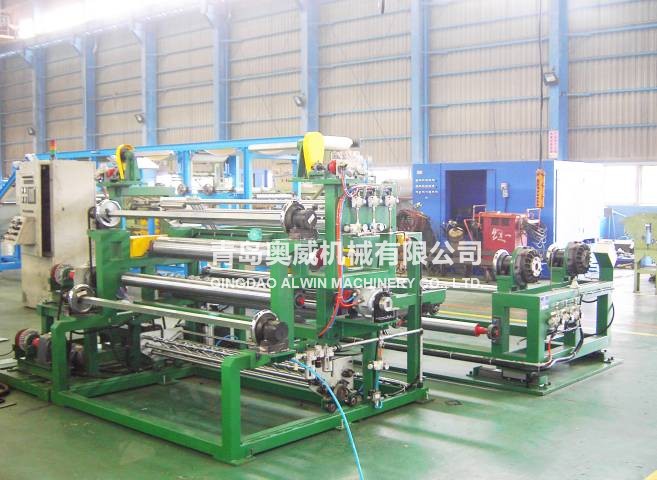

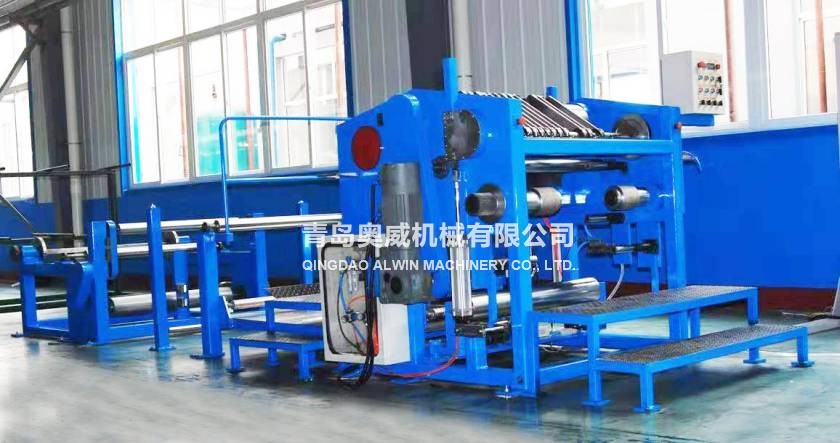

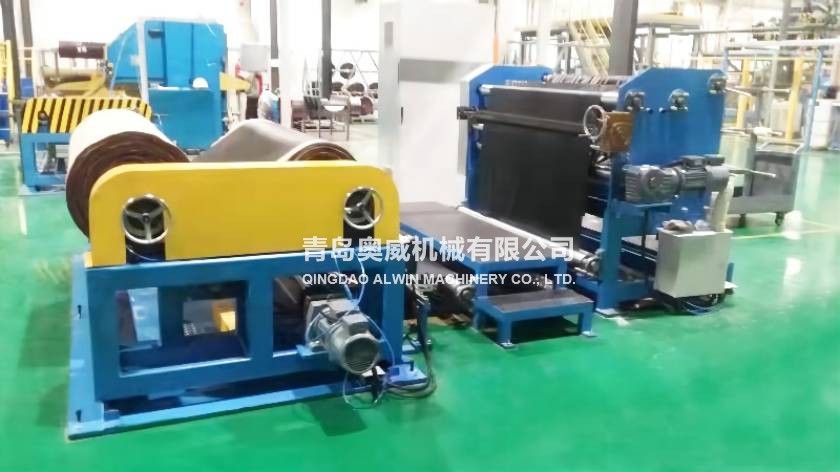

Fabric Cord Multi-cutter
Equipment use

A multi-knife vertical cutter is used to vertically cut the flagged adhesive fiber curtain or film.The equipment adopts new structural design to make the whole machine compact, reliable and efficient; convenient disassembly and assembly, easy to adjust; the pressure and longitudinal cutting speed can be adjusted at will; the opening and winding tension can be adjusted according to the characteristics of the material, the automatic separation and collection of waste tape and the reliability of equipment operation.The equipment is mainly composed of opening device, automatic correction device, cutting device, winding device and other institutions.

Fabric Cord Multi-cutter
Fabric Cord Multi-cutter
Fabric Cord Multi-cutter
Fabric Cord Multi-cutter
Parameter

压延帘布最大宽度

Maximum width of the rolling cord

1600mm

压延帘布卷最大直径

Maximum diameter of the rolling curtain coil

1200mm

垫布卷最大直径

Maximum diameter of the pad coil

500mm

最大裁切速度

Maximum cut speed

30m/min

裁切最小宽度

Cut the minimum width

20mm

最多裁切刀数(美工刀)

Maximum cutter number (art cutter)

80

外形尺寸(LxWxH)

Dimension

3040x2055x1800

约重

About weight

~1.5t
