Multi-layer Hydraulic Tire Curing Press Qingdao Alwin Machinery Co., Ltd.

Tire Curing Press (Tire Vulcanizer)

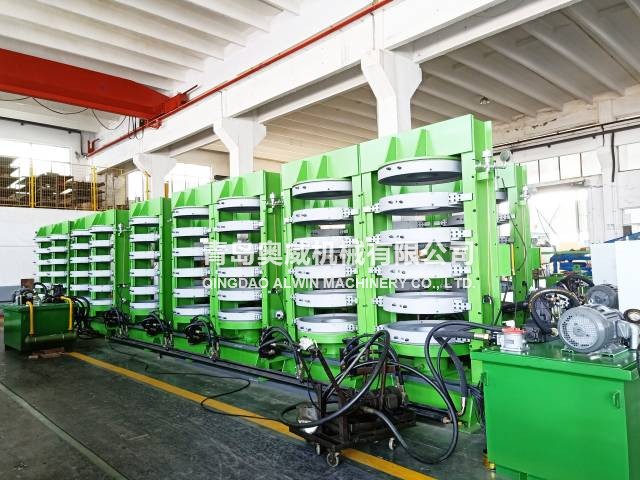

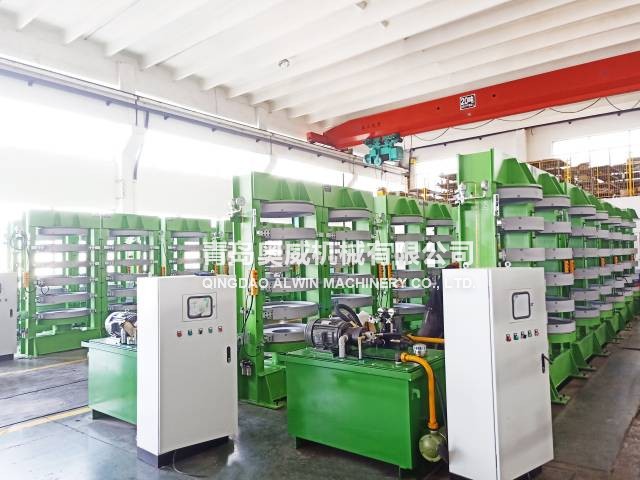

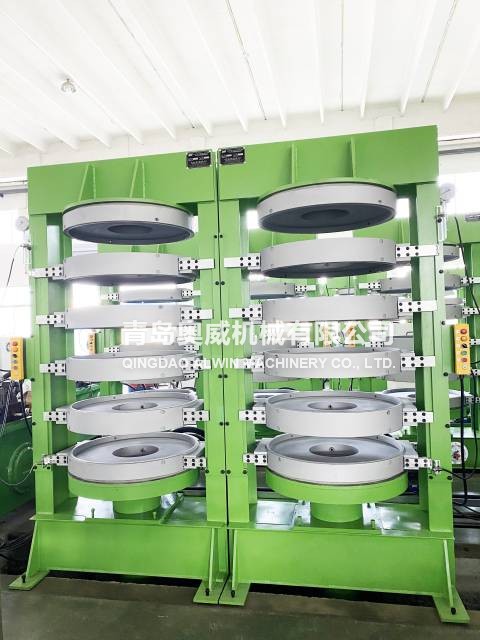

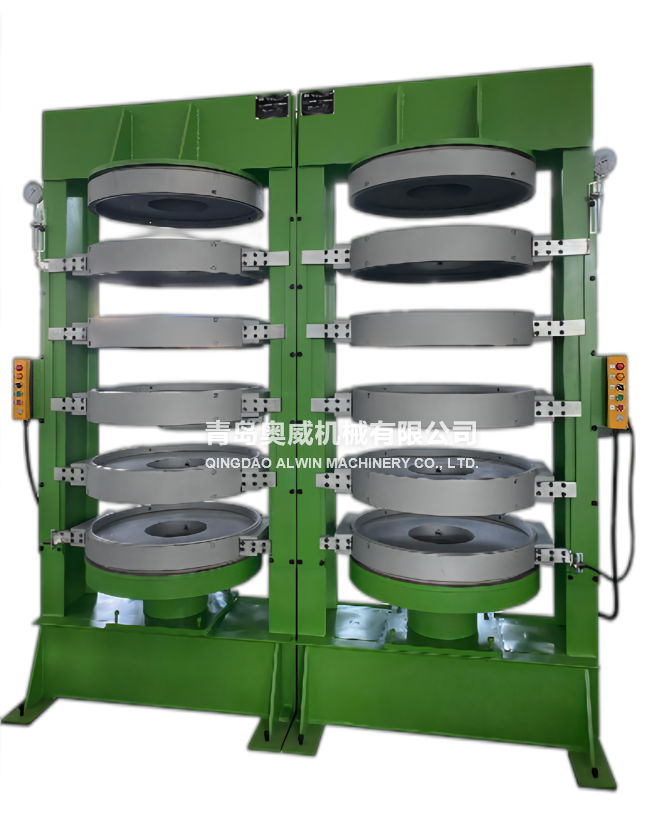

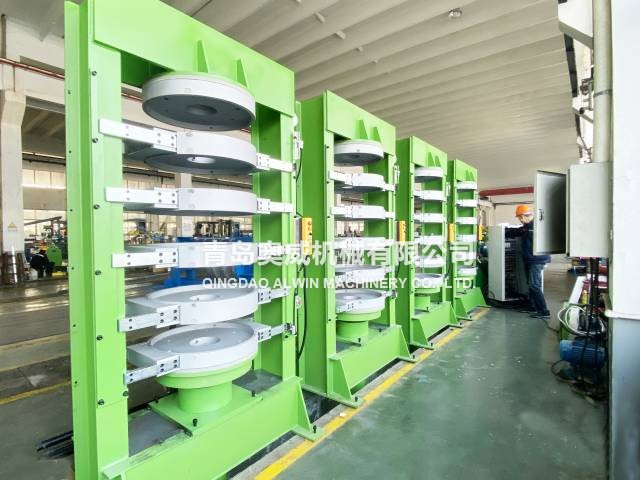

Multi-layer Hydraulic Tire Curing Press

Equipment use

The machine is used for various electric vehicles,motorcycle tire curing,,except man operated tire loading and removal,the entire curing process is automatically controlled.

Parameter

型号Type	YLL-400	YLL-600	YLL-1000
工作层数 Working layer	4	4	4
热板外径 O.D. of heating plate (mm)	600	800	850
总压力 Total pressure (KN)	400	600	1000
柱塞直径 Dia. of plunger (mm)	180	200	290
蒸汽工作压力 Steam working pressure (Mpa)	0.6-0.8	0.6-0.8	0.6-0.8
电气控制 Electric control system	PLC	PLC	PLC
