Tire Curing Press (Tire Vulcanizer)
Two-layer Bladder Shaping Motorcycle Tire Curing Press
Equipment use

The curing tyre vulcanizing machine with bladder. It greatly reduces the labor intensity of workers, improve the quality of the tyre curing. The bottom mold can be automatically pulled out, realize the closed embryos tires and closed to remove the tires,when embryos installed, automatically enter, realize clamping curing,curing time to determine, automatic alarm, and then realize open mould,tires with the lower die out,take out of finished tire. We can design various models and specifications of the vulcanizing machine according to the user needs.

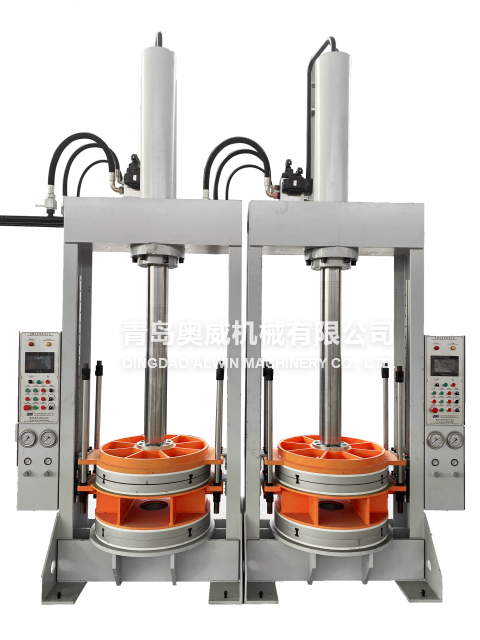

Two-layer Bladder Shaping Motorcycle Tire Curing Press

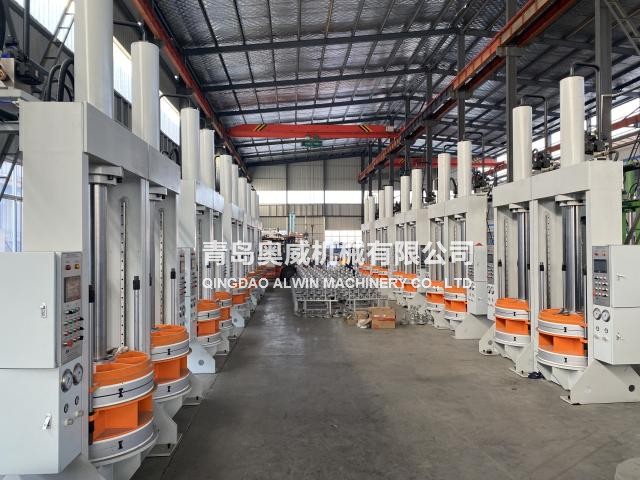

Two-layer Bladder Shaping Motorcycle Tire Curing Press

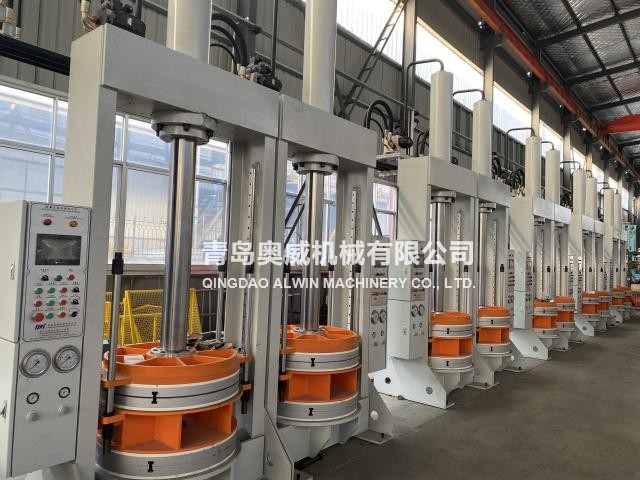

Two-layer Bladder Shaping Motorcycle Tire Curing Press

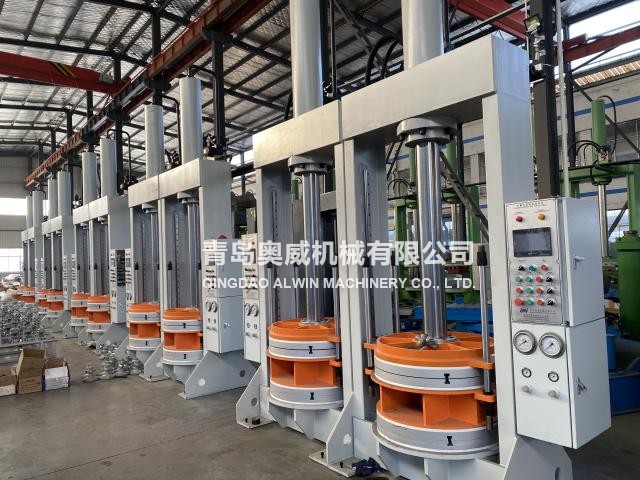

Two-layer Bladder Shaping Motorcycle Tire Curing Press
Two-layer Bladder Shaping Motorcycle Tire Curing Press
Two-layer Bladder Shaping Motorcycle Tire Curing Press
Parameter
型号TypeLLB-650/40LLB/M-800/60LLB-800/100

最大合模力

Max.Closing mold force (T)

25-406080-90

热板直径

Dia. of heating plate (mm)

500-650800800-840

热板间距

Space between heating plates (mm)

300-600500-600600-650

适用轮辋直径

Applicable rim dia. (inch)

4”-5”-6”-8”8”-16”16”-18”

模具数量

Qty. of molds (set)

221

柱塞直径

Dia. of plunger (mm)

200200290

中心杆直径

Dia. of center pole (mm)

25-3535-4040

中心杆行程

Stroke of center pole (mm)

200200300

工作气压

Working air pressure (Mpa)

0.6-0.80.6-0.80.6-0.8

内压空气

Internal air pressure (Mpa)

1.81.81.8

内压蒸汽

Internal steam pressure (Mpa)

0.8-1.50.8-1.50.8-1.5

预定型内压

Internal pressure of preshaping (Mpa)

0.1-0.20.1-0.20.1-0.2

电机功率

Motor power (kw)

7.57.511

主机外形尺寸

Overall dia. of host machine (LxWxH) (mm)

1200x900x23002400x900x29102700×1300×2550

泵站外形尺寸

Overall dia. of pump (LxWxH) (mm)

1000x600x12001000x600x12001520×1130×1300

主机重量

Weight of host machine (kg)

250028003500
