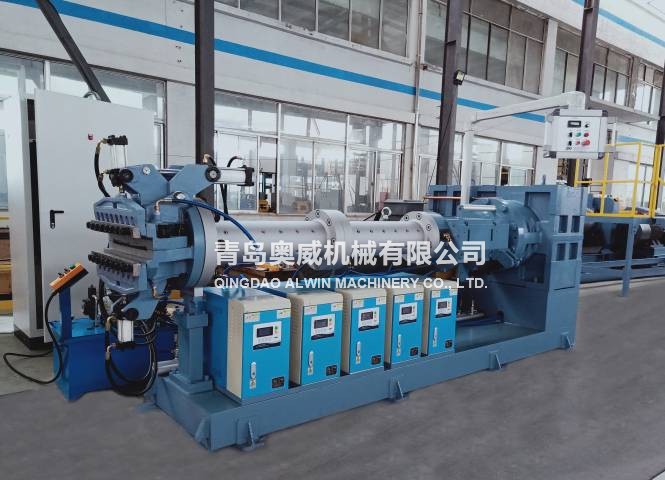

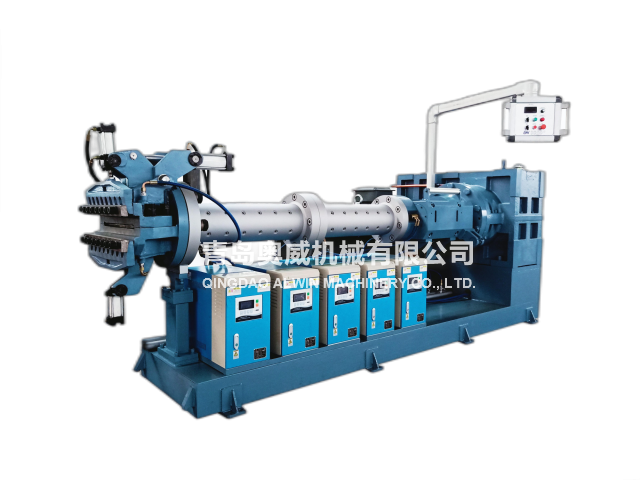

The machine has high production capacity, low rubber raw material temperature, low energy consumption, good mixing effect, even plasticizing. The machine is widely used in rubber hose, tyre tread rubber strip, inner liner, rubber seal strip etc. extruding. Also can be used to supply rubber for small size calender.
| 型号 Type | XJD-50 | XJD-65 | XJD-75 | XJD-90 | XJD-120 | XJD-150 | XJD-200 | XJD-250 | |
螺杆直径 Screw diameter(mm) | Φ50 | Φ65 | Φ75 | Φ90 | Φ120 | Φ150 | Φ200 | Φ250 | |
螺杆长径比 L/D ratio | 12:1 | 12:1 | 14:1 | 16:1 | 16:1 | 16:1 | 18:1 | 18:1 | |
螺杆转速 Screw RPM | ~73 | ~80 | ~60 | ~60(55) | ~50 | ~45 | ~33 | ~26 | |
最高生产能力 Max.production capacity(kg/h) | 60 | 120 | 180 | 350 | 800 | 1500 | 2500 | 3500 | |
驱动功率 Main motor power(KW) | 11-22 | 18.5-30 | 37-45 | 47-75 | 75-110 | 160-250 | 220-355 | 355-450 | |
整机重量 Weight(t) | 1.2 | 1.6 | 2 | 3 | 5 | 5.3 | 9.8 | 15 | |
外形尺寸 Overall dimension(mm) | L | 1550 | 1900 | 2300 | 3360 | 3750 | 5200 | 7150 | 8500 |
| W | 1050 | 800 | 1150 | 1150 | 1600 | 1650 | 1950 | 2450 | |
| H | 1550 | 1500 | 1600 | 1450 | 1550 | 1600 | 2300 | 2600 | |
